| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asrock |
| Model | B650E STEEL LEGEND WIFI |
| CPU hỗ trợ | AMD |
| Chipset | AMD B650 |
| RAM hỗ trợ | 4 x DIMM, Max. 128GB Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) |
| Khe cắm mở rộng | CPU: |
| - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
| - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* | |
| Chipset: | |
| - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Ổ cứng hỗ trợ | CPU: |
| - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| Chipset: | |
| - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| - 2 x SATA3 6.0 Gb/s Connectors | |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Front) |
| - 1 x USB 3.2 Gen2 Type-C (Rear) | |
| - 1 x USB 3.2 Gen2 Type-A (Rear) | |
| - 8 x USB 3.2 Gen1 (4 Rear, 4 Front) | |
| - 6 x USB 2.0 (2 Rear, 4 Front) | |
| Cổng kết nối (Internal | - 1 x SPI TPM Header |
| - 1 x Power LED and Speaker Header | |
| - 1 x RGB LED Header* | |
| - 3 x Addressable LED Headers** | |
| - 1 x CPU Fan Connector (4-pin)*** | |
| - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| - 1 x Front Panel Audio Connector | |
| - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) | |

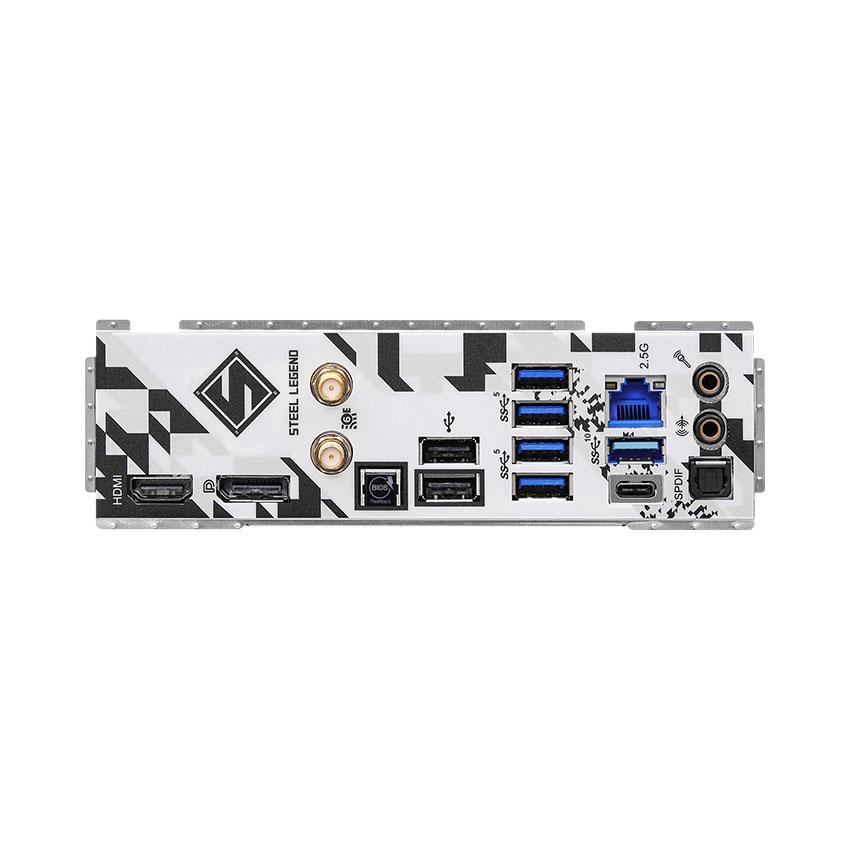

| Cổng kết nối (Back Panel) | - 2 x Antenna Ports |
| - 1 x HDMI Port | |
| - 1 x DisplayPort 1.4 | |
| - 1 x Optical SPDIF Out Port | |
| - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) | |
| - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) | |
| - 4 x USB 3.2 Gen1 Ports | |
| - 2 x USB 2.0 Ports | |
| - 1 x RJ-45 LAN Port | |
| - 1 x BIOS Flashback Button | |
| - 1 x Line Out Jack (Gold Audio Jack) | |
| - 1 x Microphone Input Jack (Gold Audio Jack) | |
| LAN / Wireless | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Kích cỡ | 802.11ax Wi-Fi 6E Module |

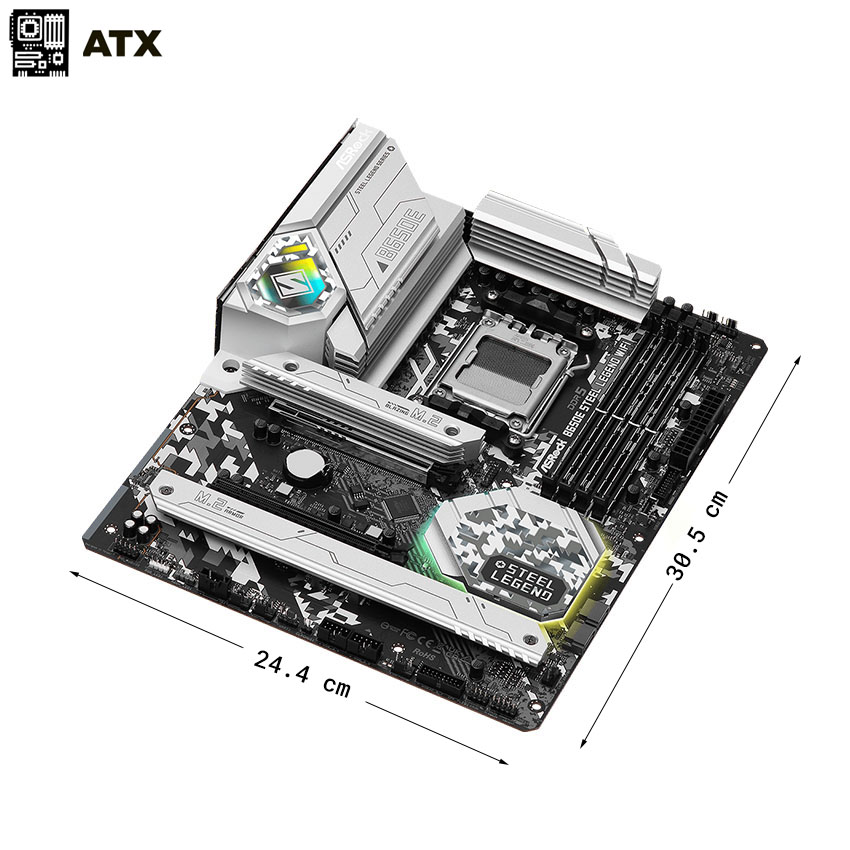

| ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
