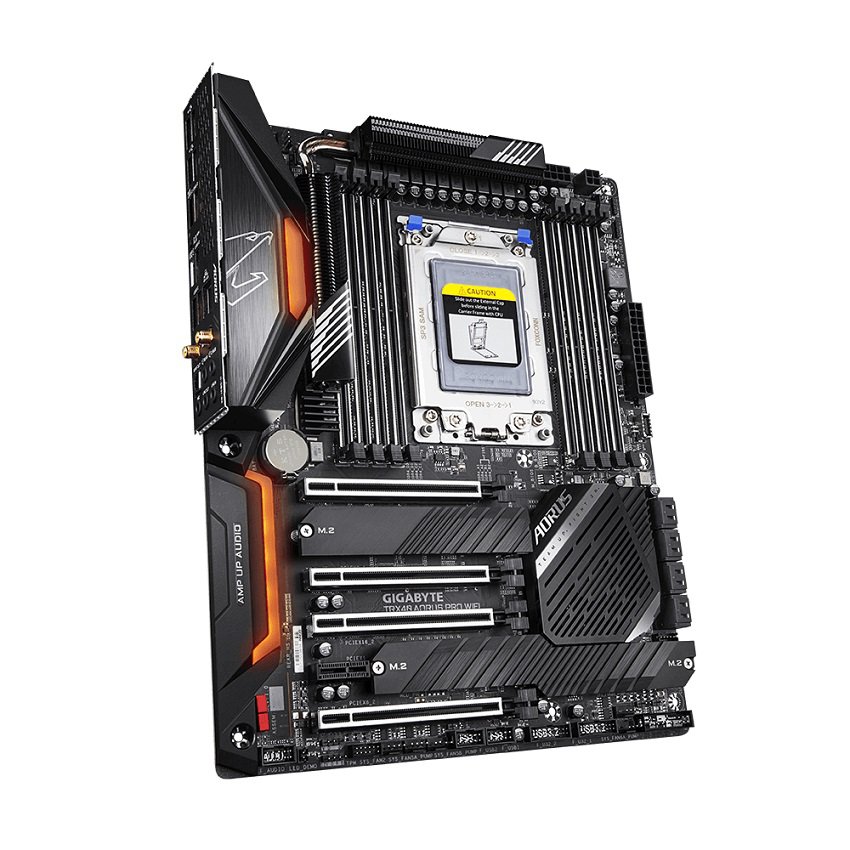

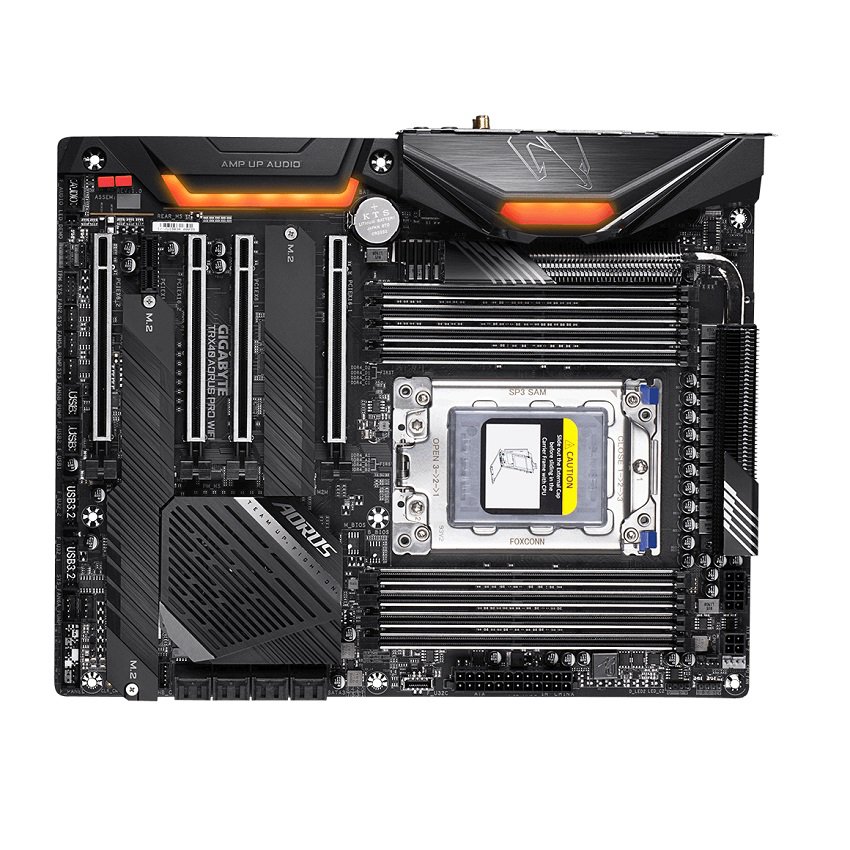

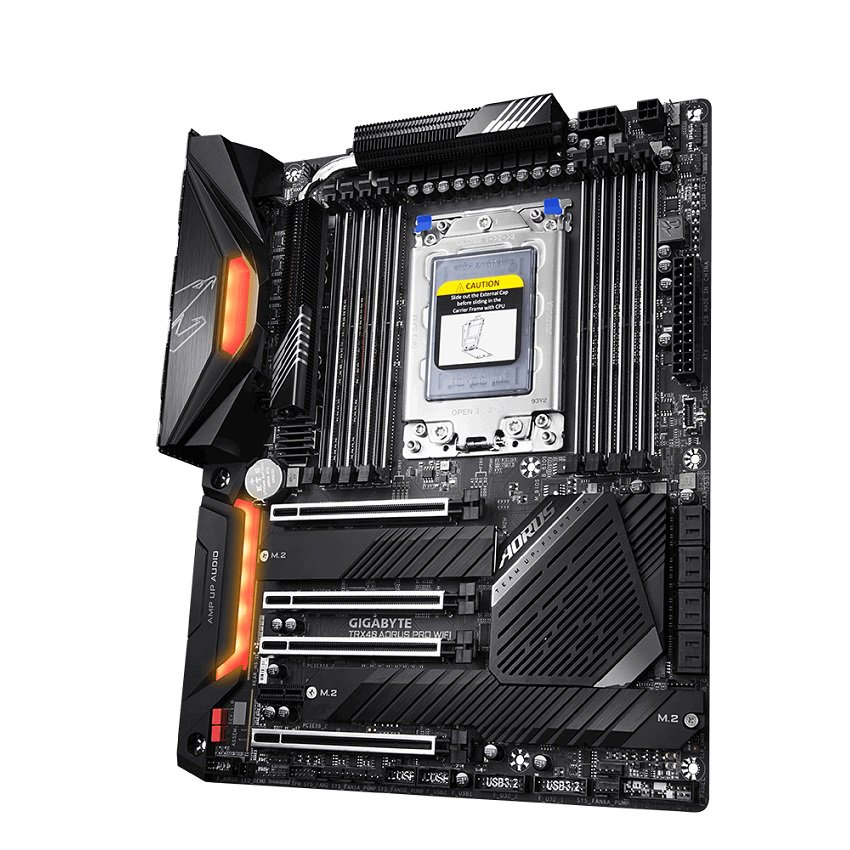

MAINBOARD GIGABYTE TRX40 AORUS PRO WIFI (AMD TRX40, SOCKET STRX4, ATX, 8 KHE RAM DDR4)

CPU hỗ trợ

Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

Chipset / Socket

Intel® Z390

Bộ nhớ (RAM)

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Công nghệ đa GPU

Supports NVIDIA® Quad SLI™ and SLI™ - Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
4. 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
5. 1 x M.2 Socket 1 connector for an Intel®CNVi wireless module (CNVI)
6. x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
7. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel®Hybrid SSD) (M2M)
8. 6 x SATA 6Gb/s connectors
9. Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors

LAN / Wireless

1. Intel®CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5
3. Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate * Actual data rate may vary depending on environment and equipment.
4. Intel®GbE LAN chip (10/100/1000 Mbit)

Âm thanh

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x digital LED strip headers
9. 2 x digital LED strip power select jumpers
10. 2 x RGB LED strip headers
11. 6 x SATA 6Gb/s connectors
12. 2 x M.2 Socket 3 connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x S/PDIF Out header
16. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
17. 1 x USB 3.1 Gen 1 header
18. 2 x USB 2.0/1.1 headers
19. 1 x Thunderbolt™ add-in card connector
20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
21. 1 x Clear CMOS jumper
22. 2 x temperature sensor headers

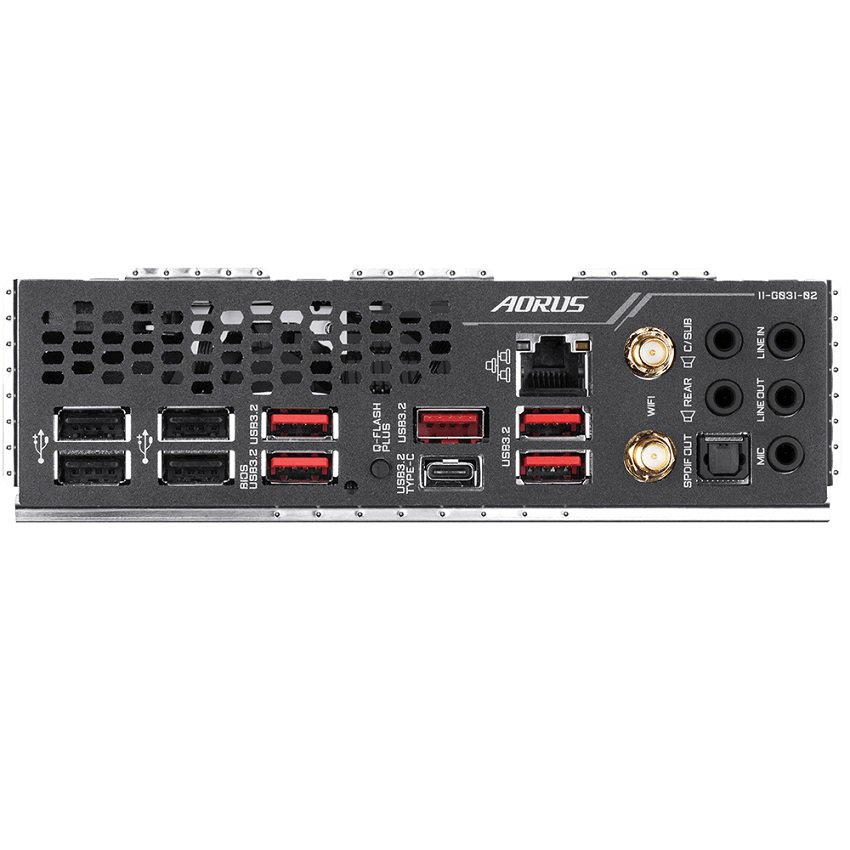

Cổng kết nối (Back Panel)

1. 4 x USB 2.0/1.1 ports
2. 2 x SMA antenna connectors (2T2R)
3. 1 x HDMI port
4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5. 2 x USB 3.1 Gen 2 Type-A ports (red)
6. 3 x USB 3.1 Gen 1 ports
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks

Công nghệ độc quyền

1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer Smart Survey USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install

Phụ kiện đi kèm

Quick Installation Guide, Support CD, I/O Shield

Hệ điều hành khuyến nghị

Windows® 10 64-bit

Chuẩn kích cỡ

ATX Form Facto
